With the increasing investigation of DNA damage response (DDR)/PARP inhibitors, alone or in combination with chemotherapy or immunotherapy, there is a need for blood-based, robust, and repeatable DDR assays.
ANGLE has developed immunofluorescence assays to identify two DNA damage markers – phosphorylated histone variant H2AX (γH2AX) and phosphorylated KRAB-associated protein 1 (pKAP1) – in circulating tumor cells (CTCs) enriched using ANGLE’s Parsortix®system.
For use in the research setting as an endpoint in clinical studies, these assays make longitudinal, repeatable monitoring of treatment response possible. The process involves shipping patient blood samples to ANGLE’s ISO 15189-accredited laboratory* in the US where the CTC enrichment and immunofluorescent detection are carried out, and a results report provided.
The assays have been fully evaluated and verified in cancer cell models and tested for feasibility in cancer patient samples. They demonstrate high analytical sensitivity and analytical specificity, with positive nuclear staining in epithelial and mesenchymal CTCs.

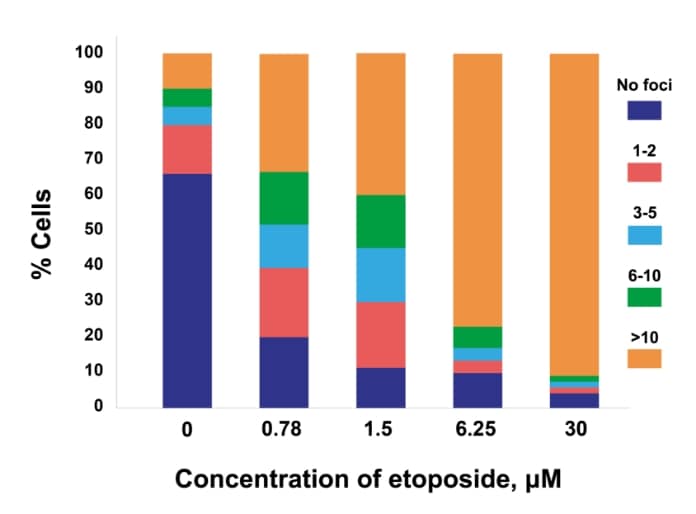

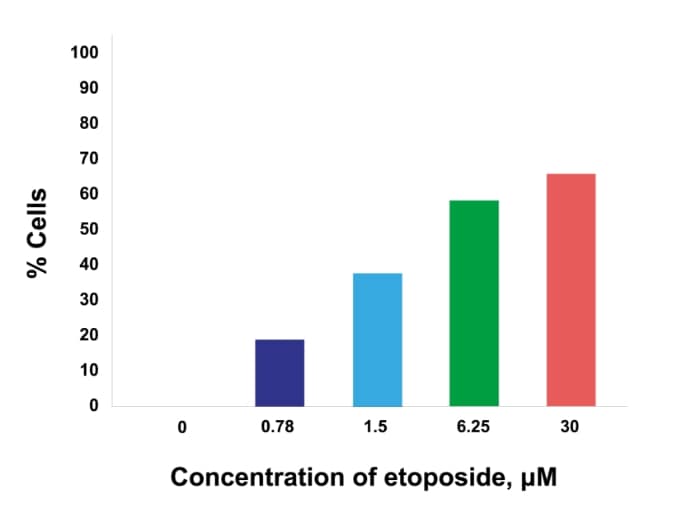

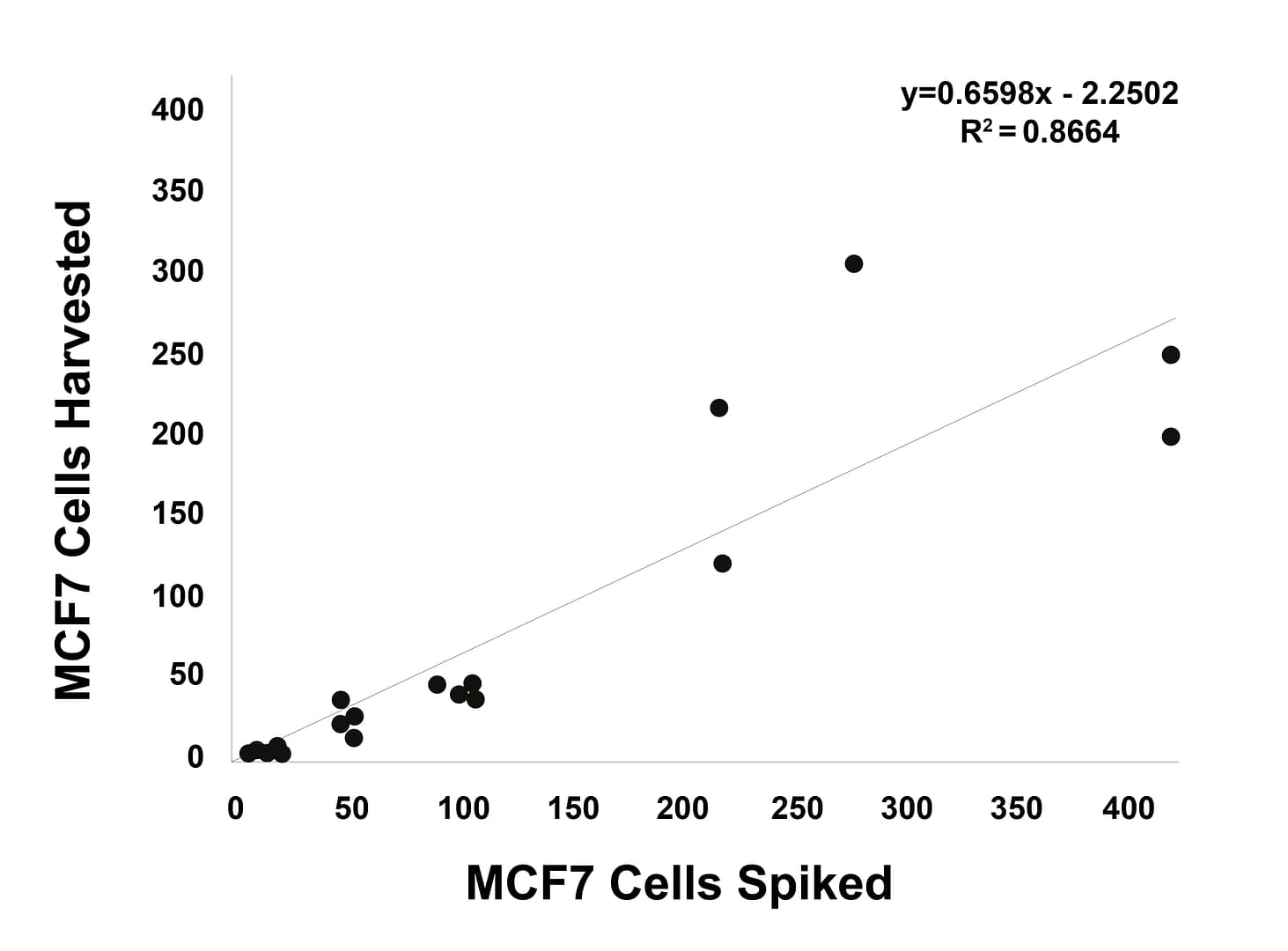

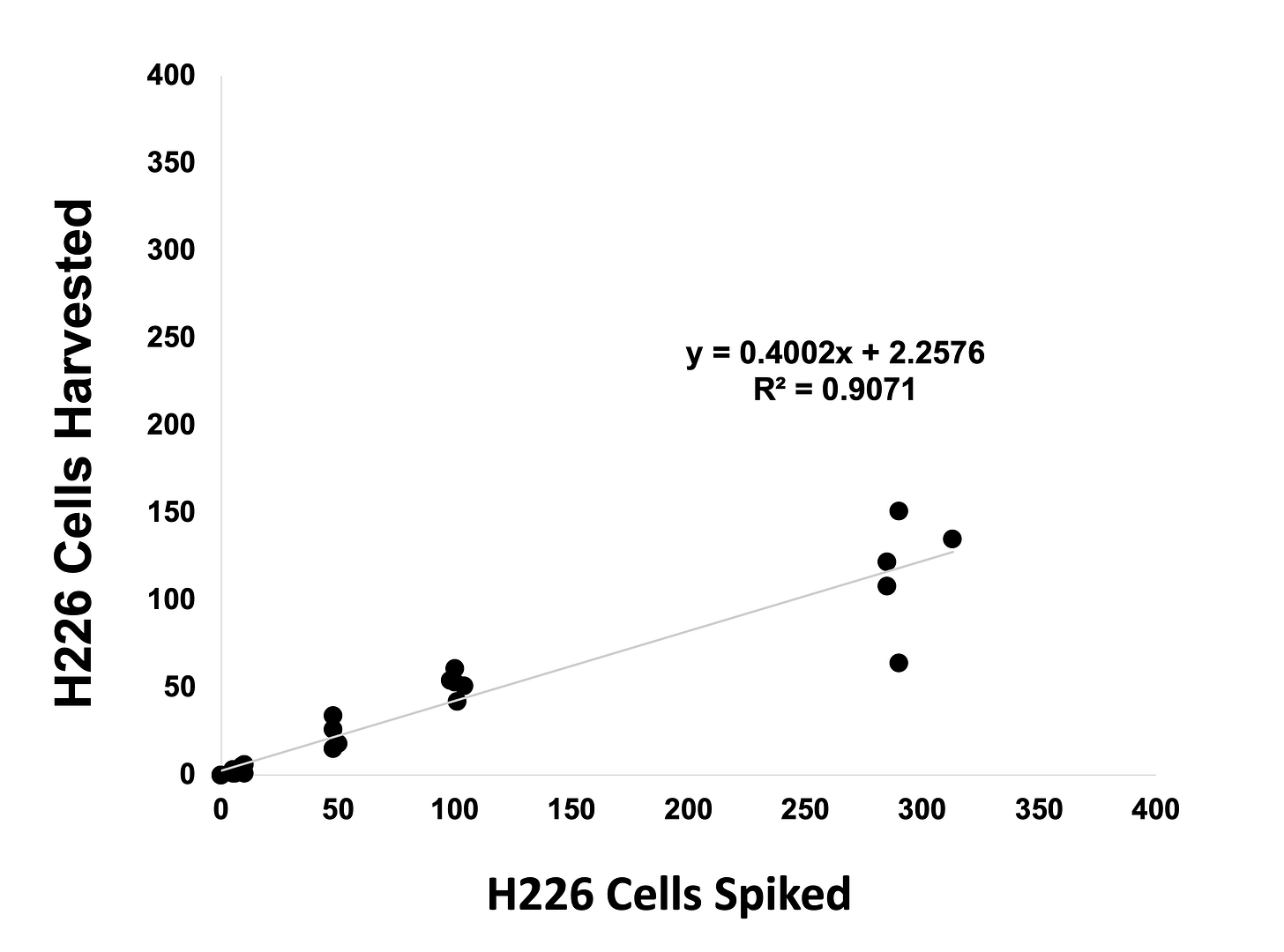

Mean performance metrics using etoposide-treated and untreated cancer cell lines (MCF7 – γH2AX; H226 – pKAP1) spiked into healthy volunteer blood and recovered using Parsortix technology.
Merged | yH2AX
Patient sample showing γH2AX-positive nuclear staining (diffuse and foci) in a mesenchymal CTC (blue = nucleus, purple = mesenchymal markers, white = blood cell markers, orange = γH2AX)
Merged | pKAP1
Patient sample showing pKAP1-positive nuclear staining in a cluster of mesenchymal CTCs (blue = nucleus, purple = mesenchymal markers, white = blood cell markers, orange = pKAP1)
The markers and assays are built on a foundation of robust evidence from clinical studies:
These studies highlight the utility of CTCs and DDR marker analysis for minimally invasive and rapid assessment of treatment response over time.
For Research Use Only. Not For Use in Diagnostic Procedures.
*The ANGLE US Lab ISO15189 accreditation scope is specific for the CTC Pap Stain Assay
- Wang LH, Pfister TD, Parchment RE, et al. Monitoring drug-induced gammaH2AX as a pharmacodynamic biomarker in individual circulating tumor cells. Clin Cancer Res. 2010;16(3):1073-84. doi: 10.1158/1078-0432.CCR-09-2799;
- Chatzkel J, Mocha J, Smith J, et al. Circulating tumor cells and γH2AX as biomarkers for responsiveness to radium-223 in advanced prostate cancer patients. Future Sci OA. 2019;6(1):FSO437. doi: 10.2144/fsoa-2019-0092;
- Tan AR, Chan N, Kiesel BF, et al. A phase I study of veliparib with cyclophosphamide and veliparib combined with doxorubicin and cyclophosphamide in advanced malignancies. Cancer Chemother Pharmacol. 2022;89(1):49-58. doi: 10.1007/s00280-021-04350-x
